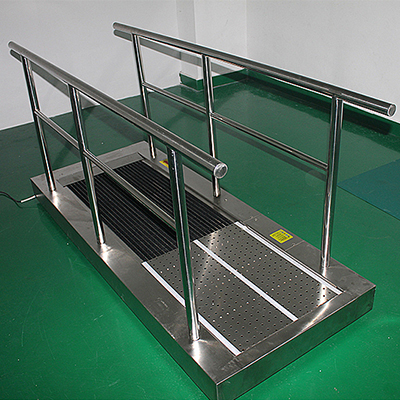

Automatic Sole Cleaning Machine

Automatic Sole Cleaning Machine

ADVANTAGE

To solve the problems of sole cleaning, yuhao develop this intelligent sole cleaning machine.

Yuhao sole cleaning machine use advanced bush technics and unique water recycle system. Can clean the dust of the soles quickly when the employee walk trough the machine. Fast, cleanly, protect the environment. One time investment, long-time benifit. it also can reduce the cost of the production. It can be instaled on different entrance of the workshop, block the dust out of the workshop, and protect the environment.

Yuhao soles cleaning machine can provide soles cleaning solution for electronic, food, semiconductor, vehicle, medical industry. The machine can be customized on customer’s floor plan.

Intelligent work, automatic sensors, save the energy , reduce the cost.

Product Description


Application:

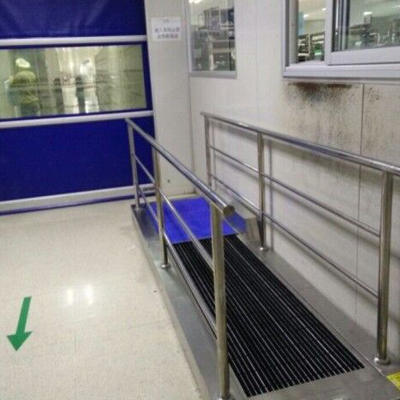

Office entrance: Install on the entrance of offices, hospital to avoid the dust bring in by the shoes.

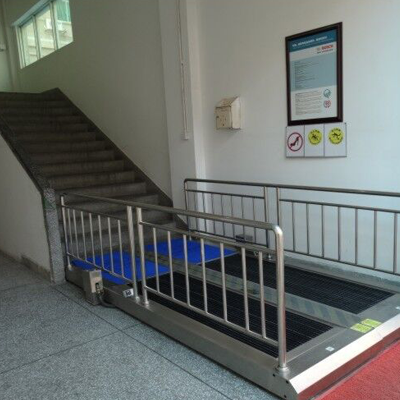

Stairs entrance: Install on the stairs entrance to avoid the dust entry the clean area.

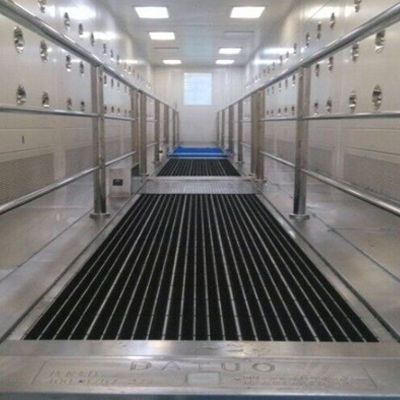

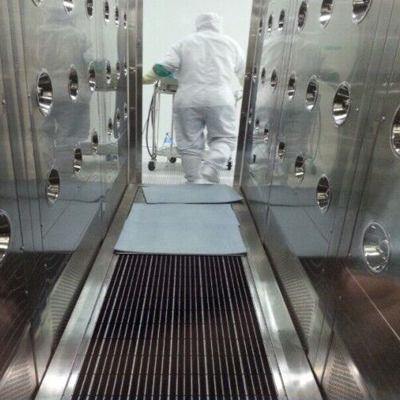

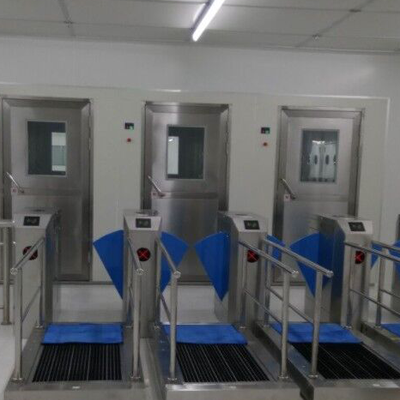

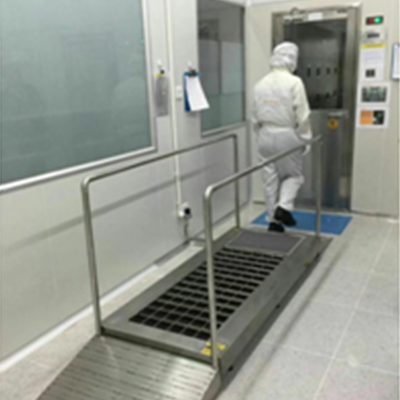

Workshop entrance:Install on the workshop entry to block the dust entry the cleanroom, to help reduce the particle inside the cleanroom

Passage way: Install in the passageway to clean the soles

Hand washing area: Install in this area to clean the soles during wash hand which can save operator’s time.

Cargo shower: Embedd installed in ground to clean the soles and wheel during people and cart pass.

Function: to clean the partile and dust of the soles in the entry from low level to high level cleanroom.

Instruction:

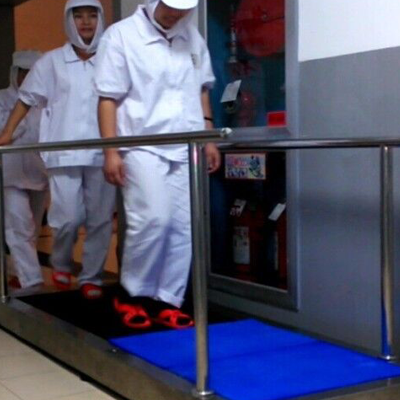

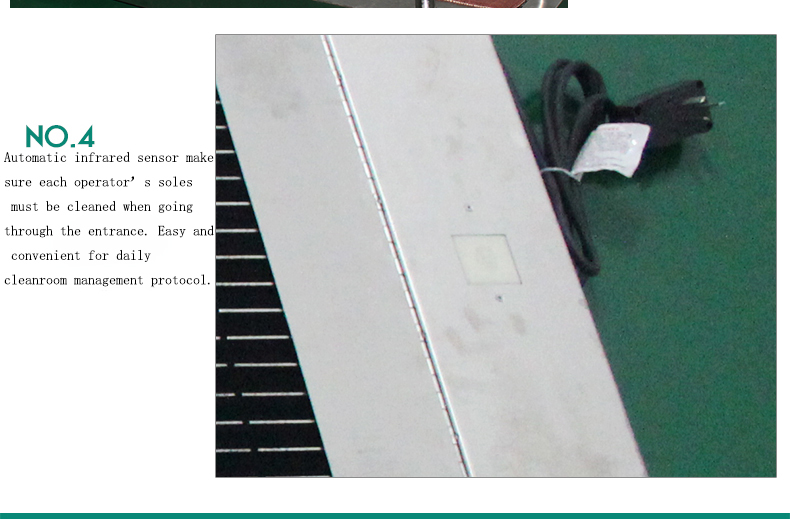

When the operator go to the end of the machine which trigger the infrared sensor, the brush start running for a maximum of 60s (adjustable from 0-60s), the particle and dust will be clean from the soles then operator go through to the drying area after 2S the operator can leave with clean soles.

Specification

Part NO.

YH-W100

YH-W185

YH-W285

size(mm)

1000*760*135

1850*760*135

2850*760*135

Cleaning area size(mm)

390*530

754*530

1754*530

Drying area size(mm)

340*550

370*550

430*550

Entry water temperature()

0-40

0-40

0-40

Volume of tank (L)

30

30

30

Voltage

AC220V 50HZ

AC220V 50HZ

AC220V 50HZ

Power of Motor

180W

180W

180W

Power of pump

100W

100W

100W

Current

1.5A

1.5A

1.5A

Safety protection

short circuit overload

short circuit overload

short circuit overload

Noise

60db

60db

60db

Maximum load

400kg

400kg

400kg

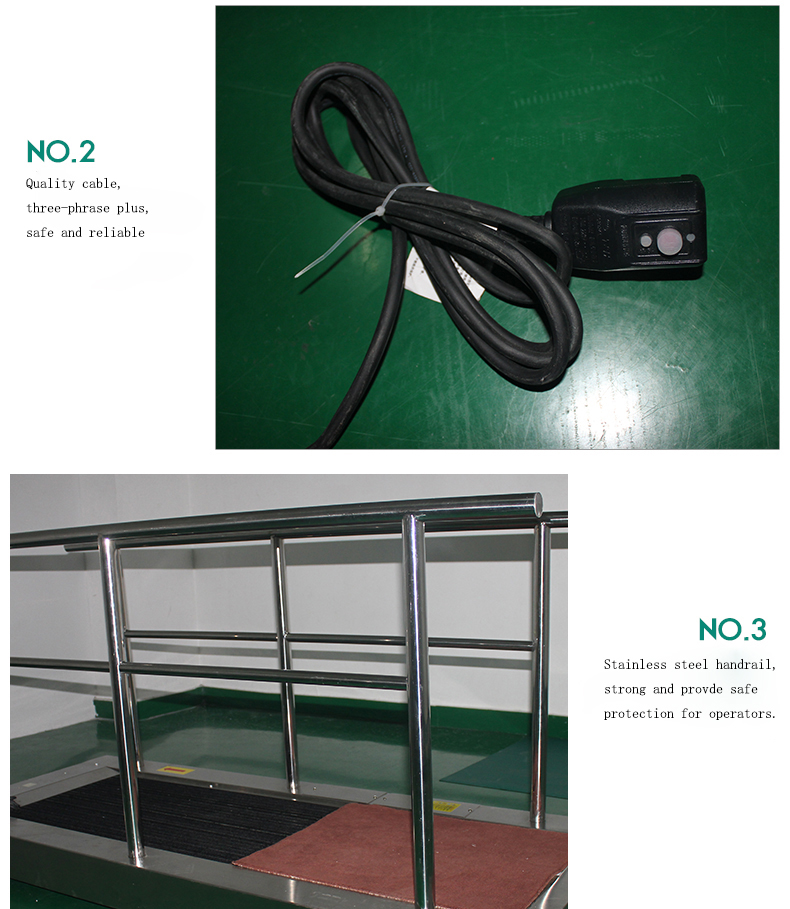

Stainless steel handrail

optional

optional

optional
