Wrist Strap and Heel Strap

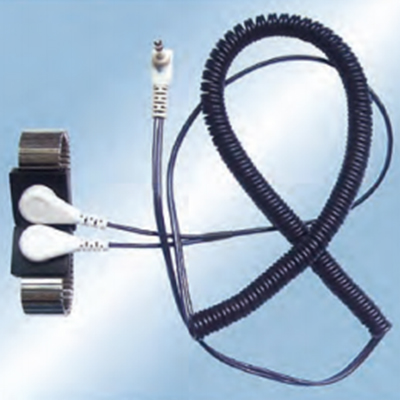

Purestat Duel Loop Metal Wrist Strap

ESD Wrist Strap is indispensable and widely use in the production process of electronic industry. It is very convenient to operate. It consists of wrist band and grounding coil cord. Band contacts with skin directly and connects with grounding coil cord forming a path-to-ground which can dissipate human bodys static charges. The grounding wire is polyurethane and insulation. Rapid retraction coil cord compresses length with resulting benefit of less tangling and dragging along work surface. There is a safety resistance of 1MΩ, it can protect operators safety as well as high sensitive electronic components.

ADVANTAGE

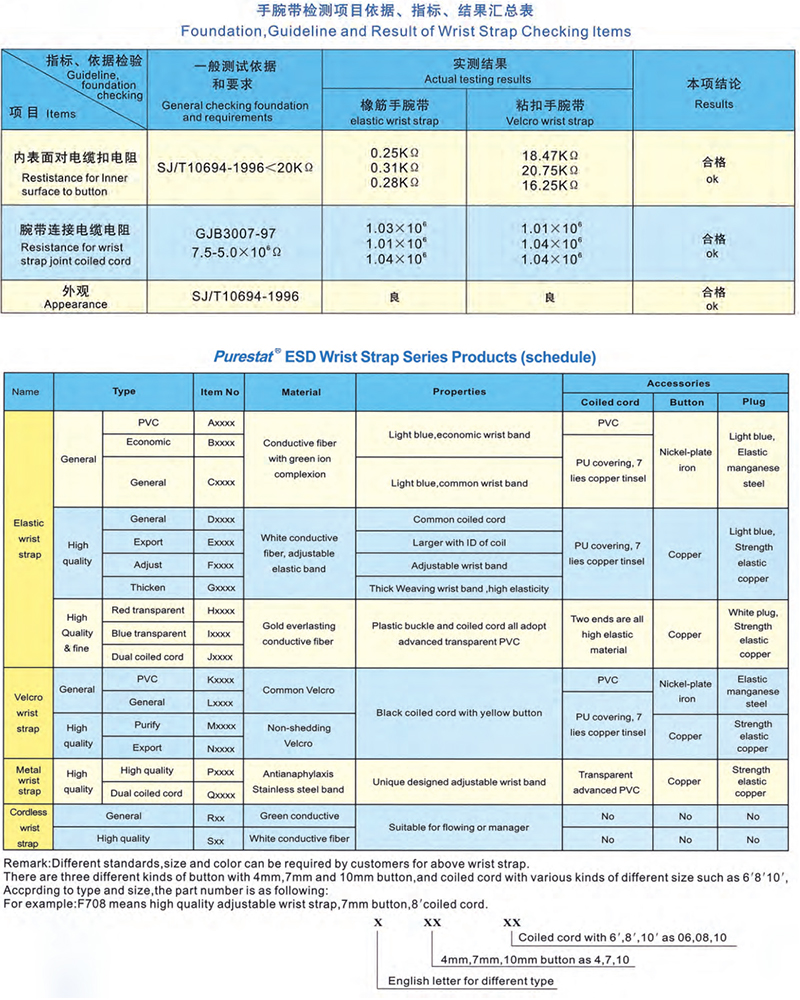

Characteristic & Specification:

  Wrist band: anti-allergic stainless steel catapult band, adjusted range: 0-30mm;

  Two sets of grounding cord each with build-in resistor of 1MΩ;

Material:

Plastic Buckle: PA6

Plug Material: copper

Material of coiled cord: PU, copper fiber

     Time of static discharge:<0.1S (1500V~100V)

     With unique designed adjustable wrist band, easy to use, nicety and quickly.


Product Description

Product application

It is used in high technology electronic products manufacturing process such as PCB, HDD, SMT, microelectronic, electronicsassembly,Semiconductor,LCD,electrical appliances,etc.
